IOLITE®
DeweSoft
signal conditioning for monitoring and industrial applications. Free
software included. Comes with an industry-leading 7-year warranty.
Choose Quantity:
1
The W5 Engineering Advantage
20+ Years in Testing
All Across North America
Trusted by Industry Leaders
24-Hour Engineering Replies
Secure Order Processing
ISO-Level Quality Assurance

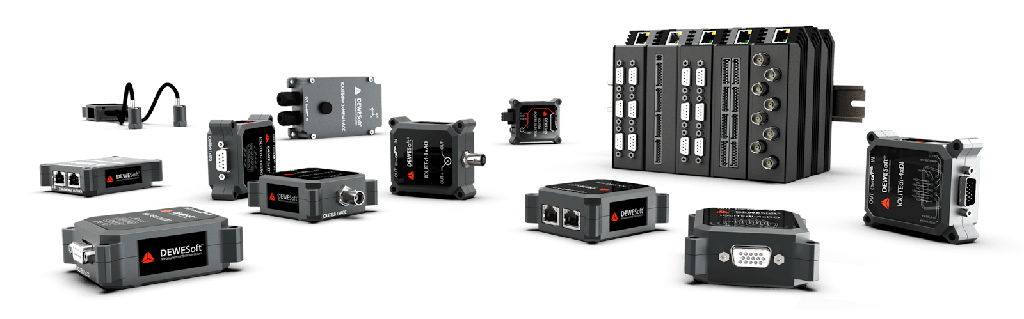

Distributed, and cost-effective data acquisition device with high-end signal conditioning for monitoring and industrial applications. Free software included. Comes with an industry-leading 7-year warranty.
Highlights
Distributable and Scalable
A wide variety of amplifiers with different channel counts per module allows perfect channel distribution for monitoring, systems can be distributed with 100m distance between the modules and great signal quality due to short sensor cable length.
High-End Signal Conditioning
IOLITE features high-quality analog amplifiers that offer excellent signal conditioning and up to 50 kHz sampling rate.
Great Price/Performance
IOLITE offers a great price/performance ratio and is suitable for monitoring and various industrial applications. Standard RJ45 cabling reduces cabling costs to the minimum.
Perfect Synchronization
Units are perfectly synchronized between each other and can use external timing sources like GPS for precise synchronization of dislocated units.
Standard Interfaces
IOLITE devices are standard EtherCAT slave devices that are compatible with any EtherCAT master controller. When connected to DewesoftX DAQ software, retransmit functionality ensures no samples are lost during measurement.
Dedicated Structural Monitoring Device
IOLITEi 3xMEMS is a dedicated device that features an integrated low-noise triaxial MEMS accelerometer perfect for structural health monitoring applications.
Dedicated Machine Condition Monitoring Device Monitoring
IOLITE 2xASI is an integrated distributed DAQ device for vibration, temperature, and angle measurement, specifically designed for machine condition monitoring.
Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
Industrial Data Acquisition
IOLITE brings award-winning and easy-to-use Dewesoft data acquisition into industrial and monitoring applications.
A cost-effective design does not compromise the signal conditioning quality. All signal amplifiers are designed to offer high-end signal conditioning with 24-bit resolution and a high sampling rate of up to 50 kHz/channel.
IOLITE DAQ devices use RJ45 connectors which allow easy connection of modules and reduce cost by using standard low-cost Ethernet/EtherCAT cables.

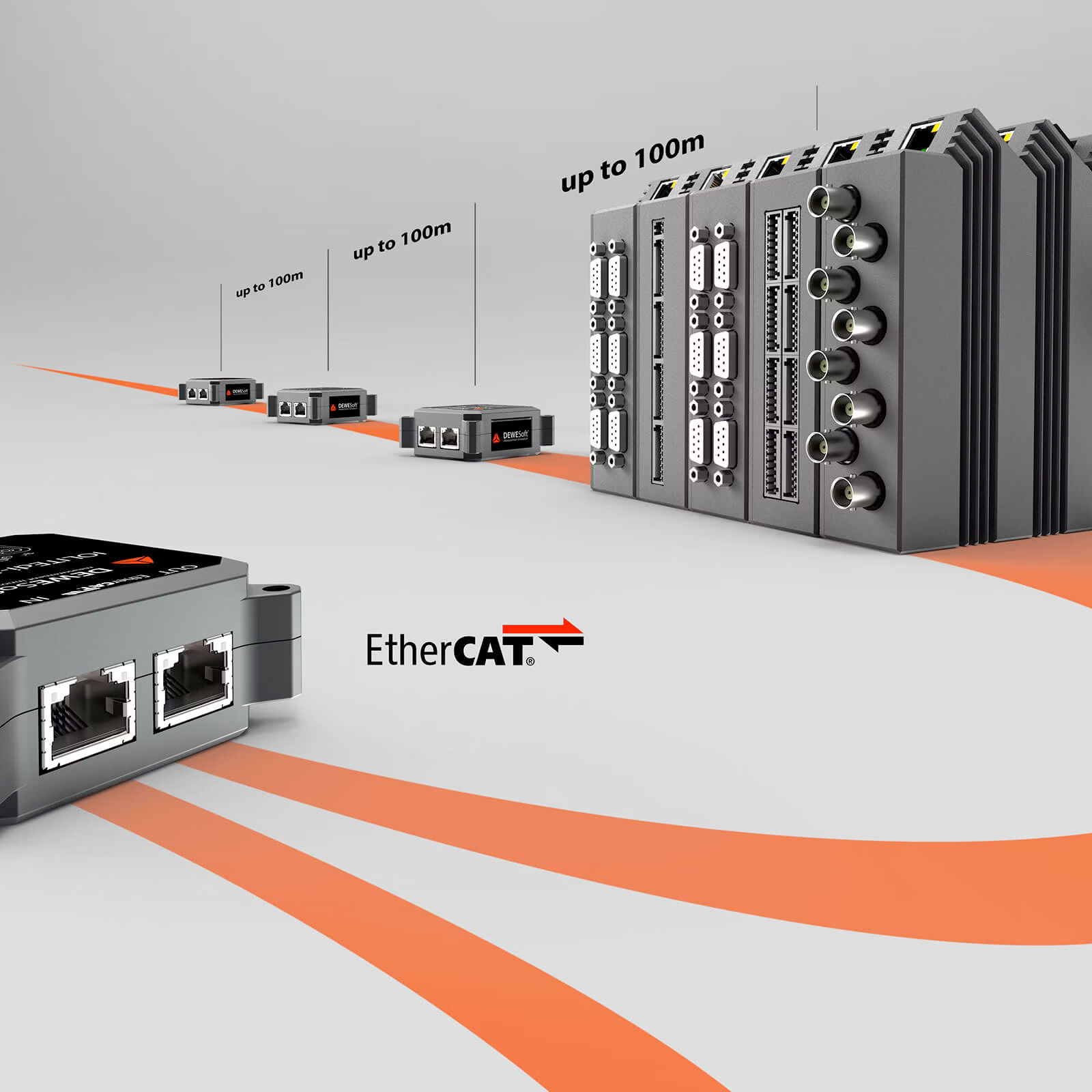

Distributable Down to Single Channel
IOLITE devices come in single and multi-channel versions. Devices can be daisy-chained together with a single cost-effective Ethernet/EtherCAT cable with RJ45 connectors. Devices can span up to 100m apart.
This makes IOLITE perfect for distributed measurements where you can place data acquisition close to the source of your measurement - sensors.

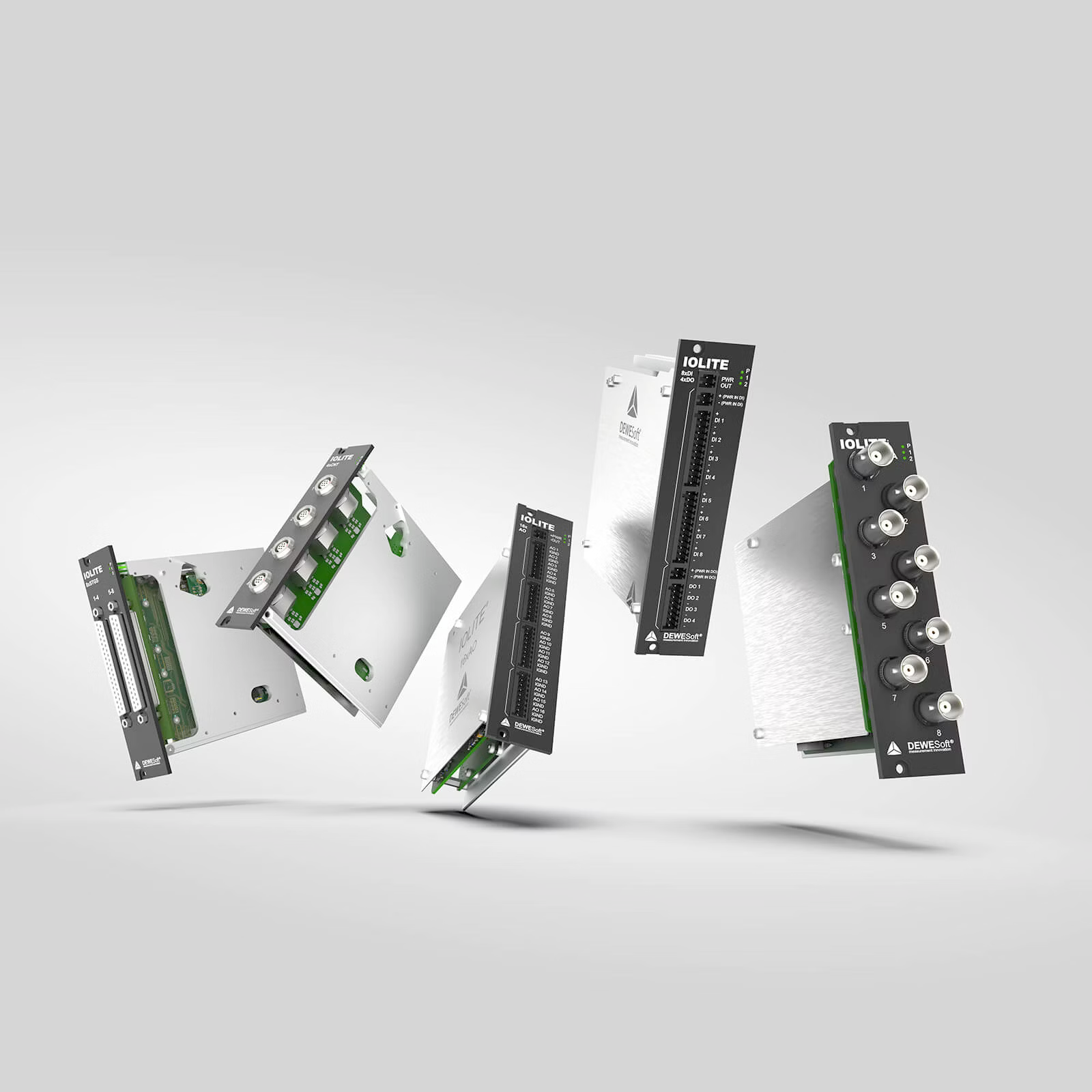

Perfect Signal Conditioning
IOLITE offers high-end signal conditioning. With its range of input and output slots, you can measure voltage, current, strain, stress, vibration, sound, temperature, digital, counters, and more.
Proven high-quality data acquisition hardware combined with award-winning DewesoftX data acquisition software performs data collection without losing even a single sample. It also provides great data visualization and processing capabilities.
Data can be stored in a time-series database, and served to SCADA systems using standard interfaces such as OPC UA or XCP to truly supportIndustry 4.0 applications.
Off-the-shelf DewesoftX data acquisition software with a series of supported industry-standard interfaces makes IOLITE the perfect choice for even the most price-sensitive measurement and control tasks.

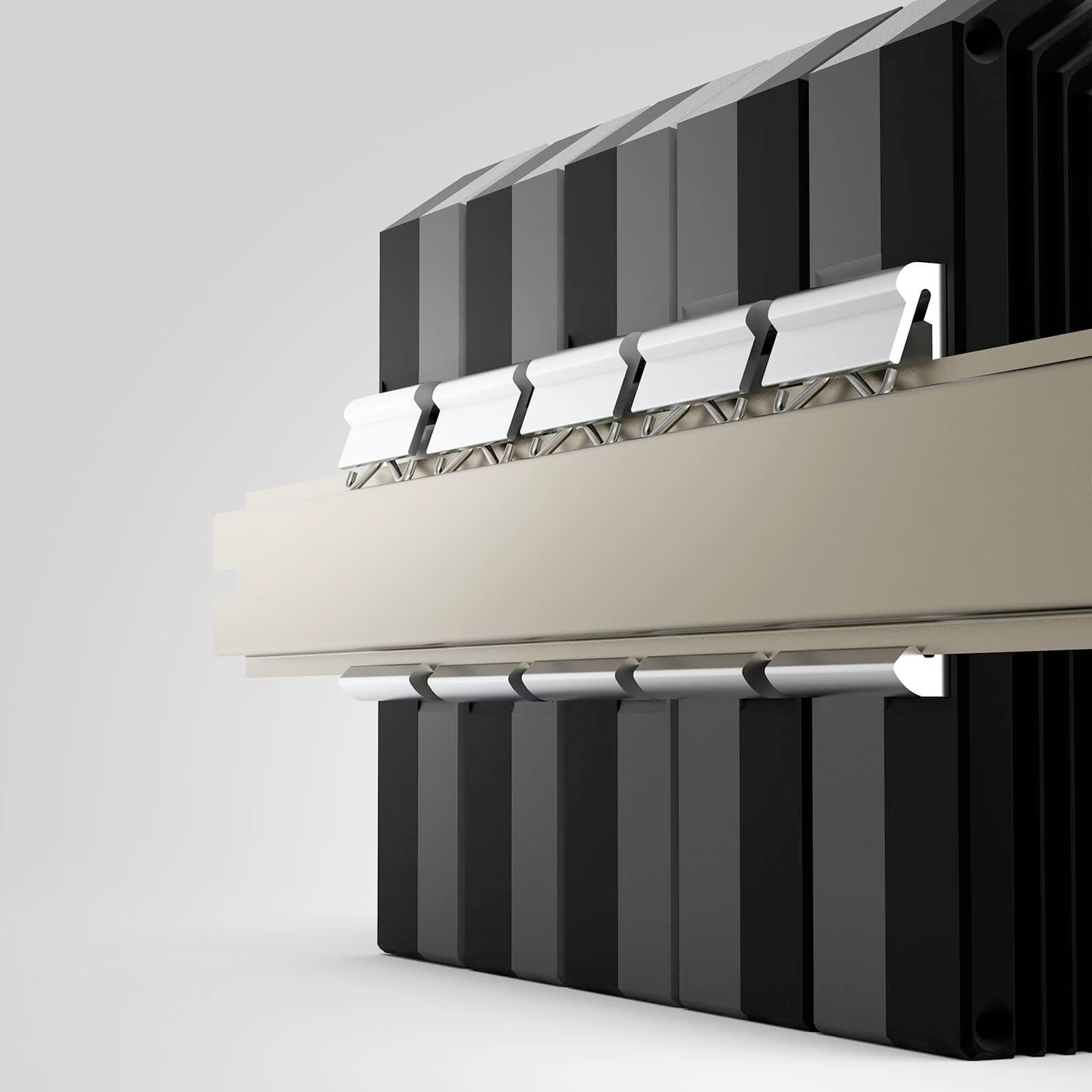

Industrial DIN Rail Mounting
IOLITE multi-channel modules are compatible and can be mounted on a standard industrial DIN rail. This makes them perfect for mounting in industrial cabinets, similar to PLCs and similar devices. IOLITE multi-chassis offers an easy clip-in mechanism for mounting to all standard industrial DIN rail mounts.
IOLITE single-channel modules are small and can be placed next to your measurement points. They offer screw holes for easy mounting with screws or any other method.
IOLITE 3x-MEMS
Integrated Low-Noise Triaxial Accelerometer
IOLITEi 3x-MEMS are dedicated devices for structural and vibration monitoring applications. They feature an integrated low-noise triaxial MEMS accelerometer.
With only 25 µg/√Hz spectral noise density and 100 µg, residual noise at 50 Hz bandwidth the devices are a cost-effective solution for seismic measurements.

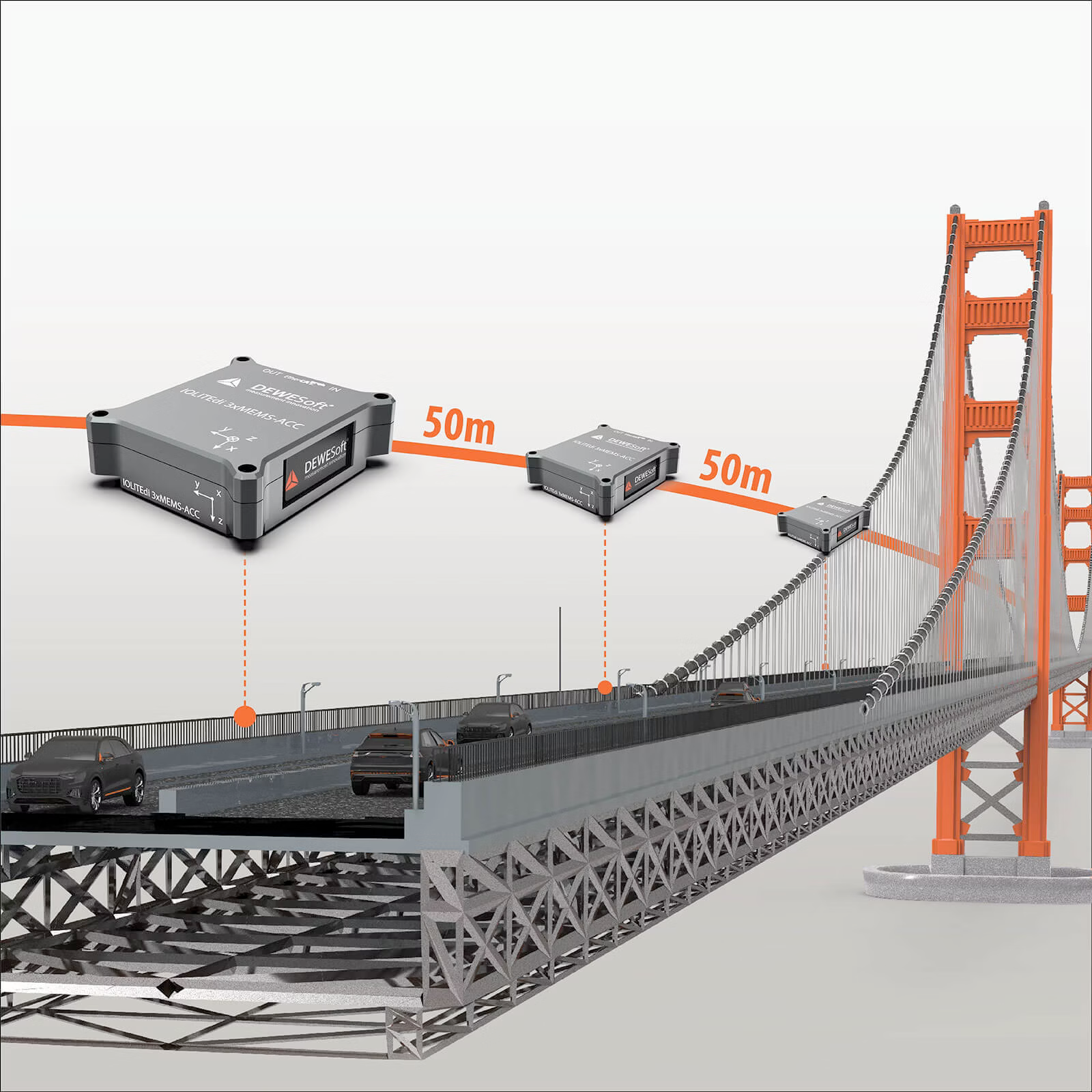

Devices are a perfect fit for structural health monitoring and ideal for permanent condition monitoring on big structures such as bridges, buildings, antennas, and stadiums.
Even though the devices measure acceleration, they can also be used to precisely measure displacement by integrating the acceleration twice and applying appropriate filtering. The task is straightforward with DewesoftX data acquisition software and only requires you to check the displacement measurement option.
Special "INC" versions are available that can also measure static inclination.
Learn more on the IOLITEi 3xMEMS site.
